Description

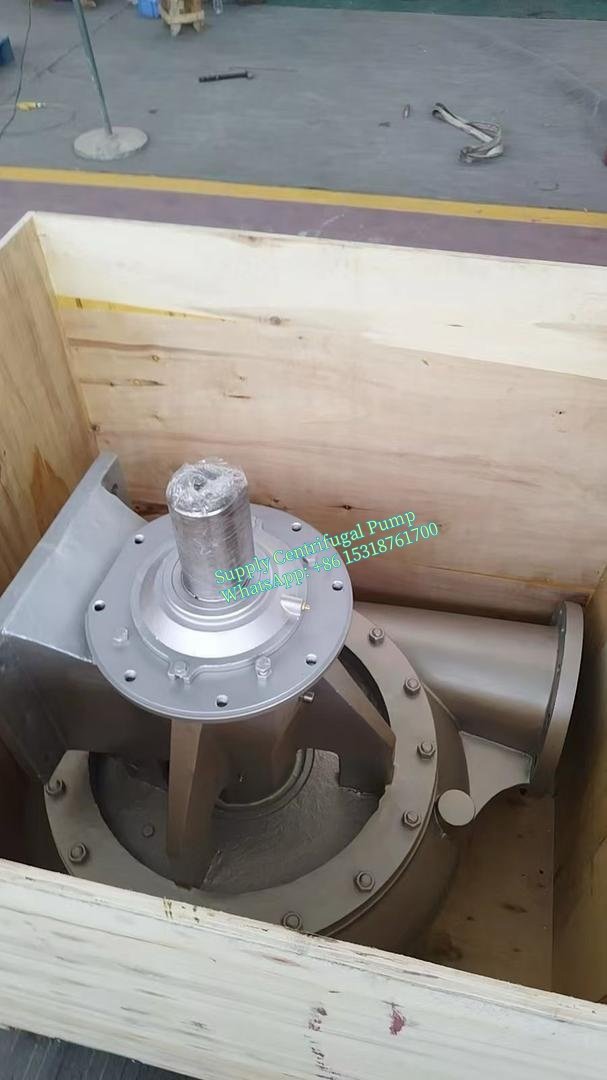

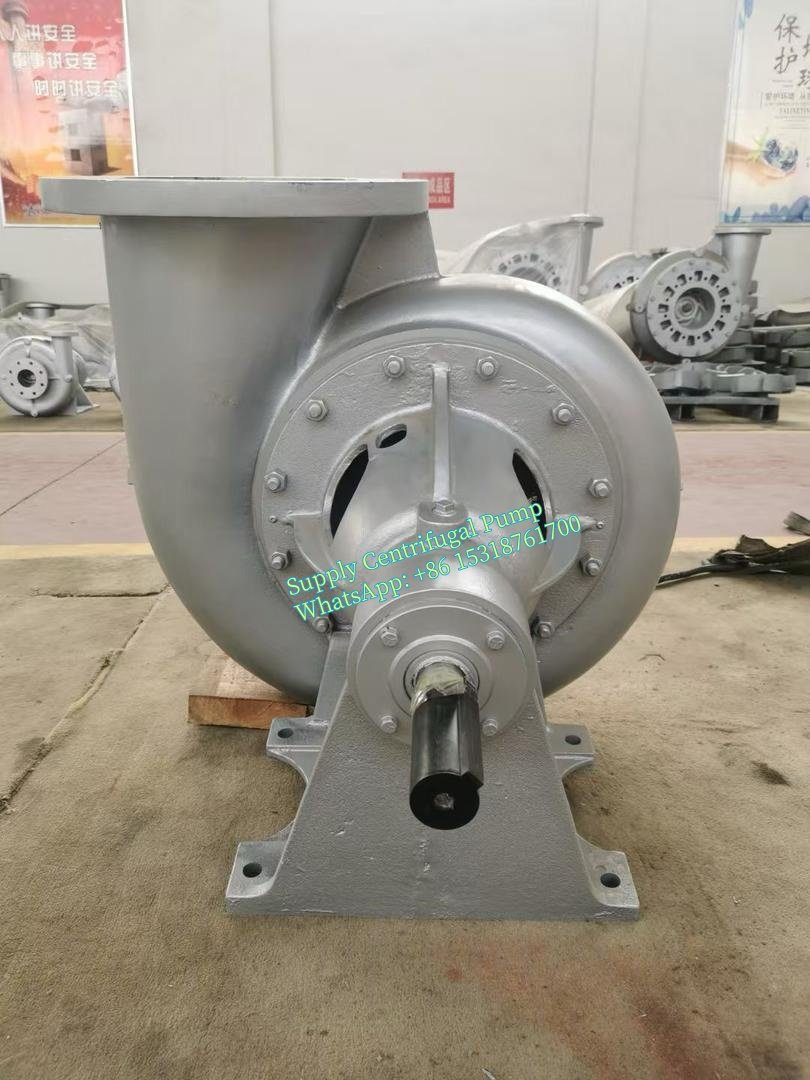

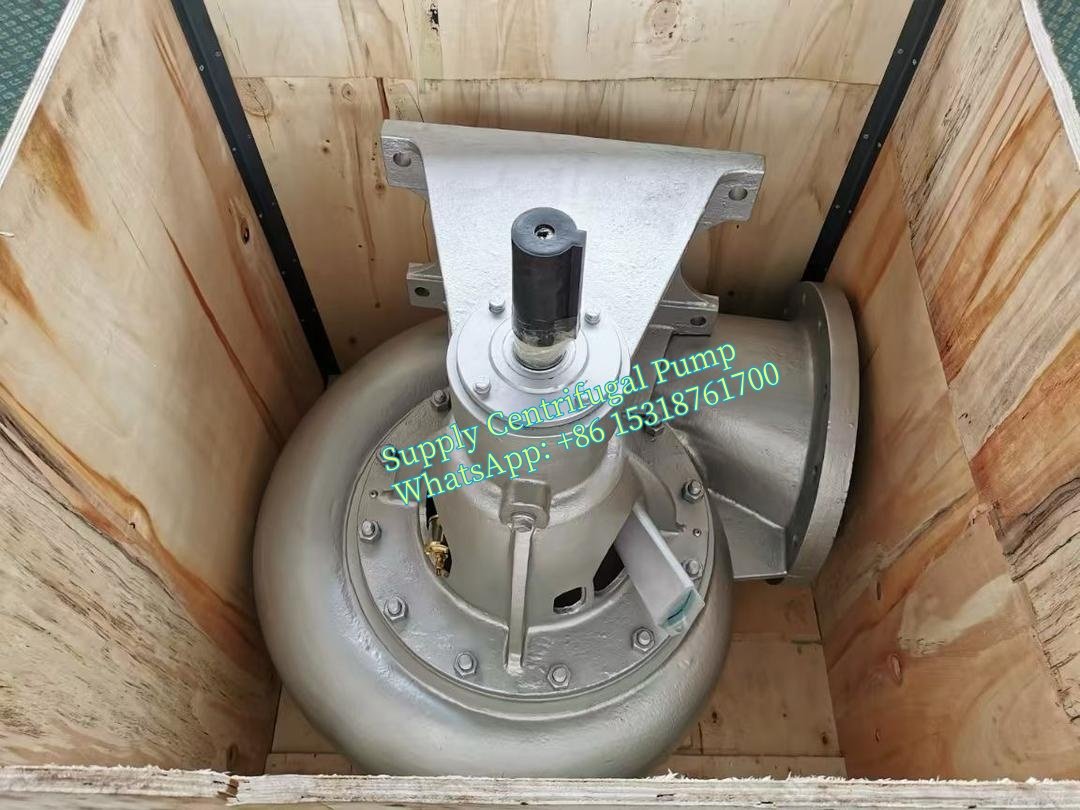

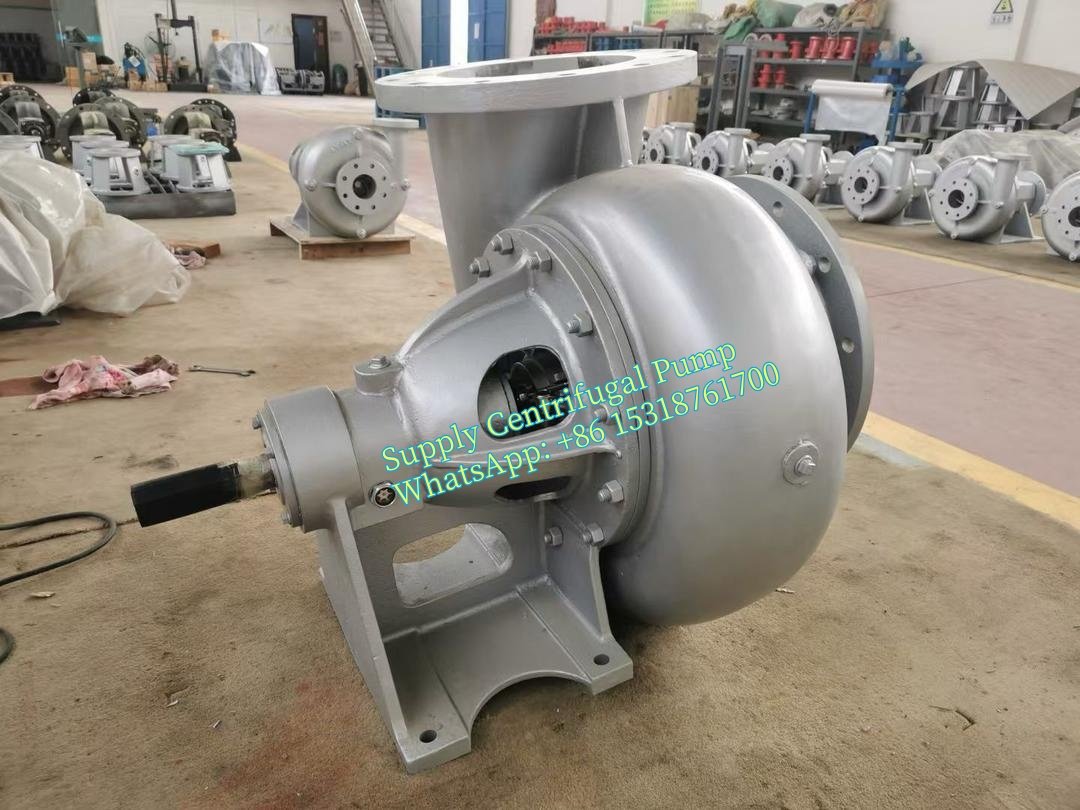

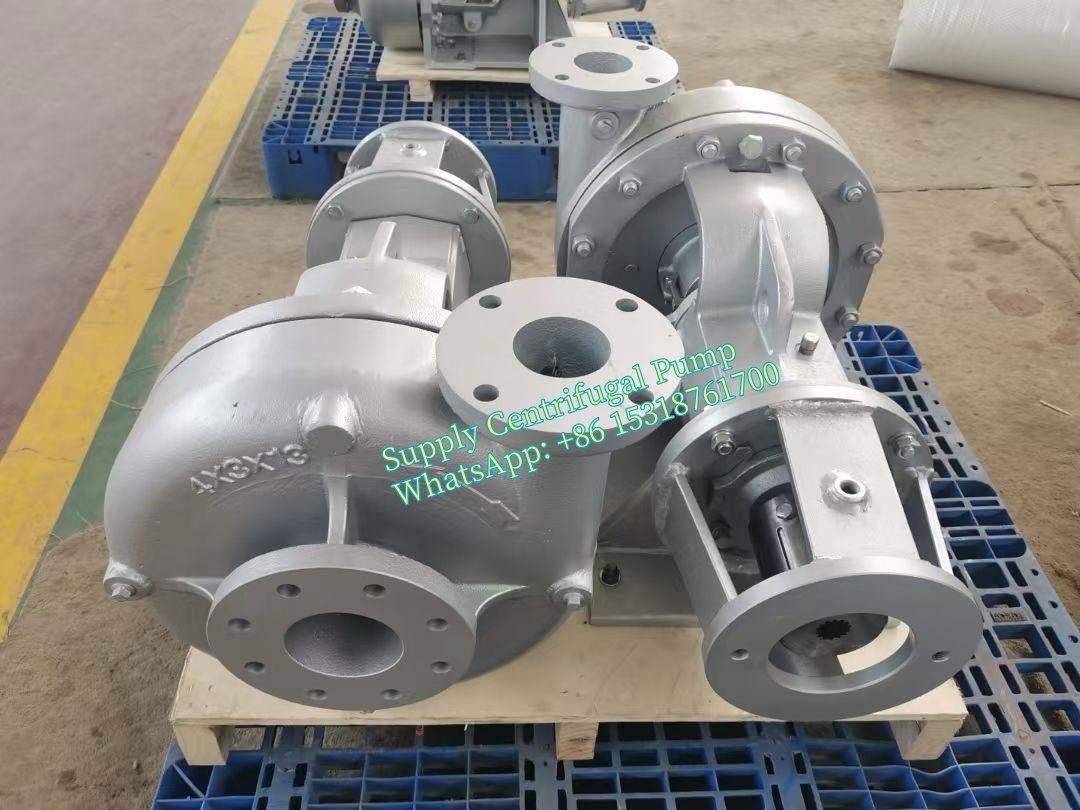

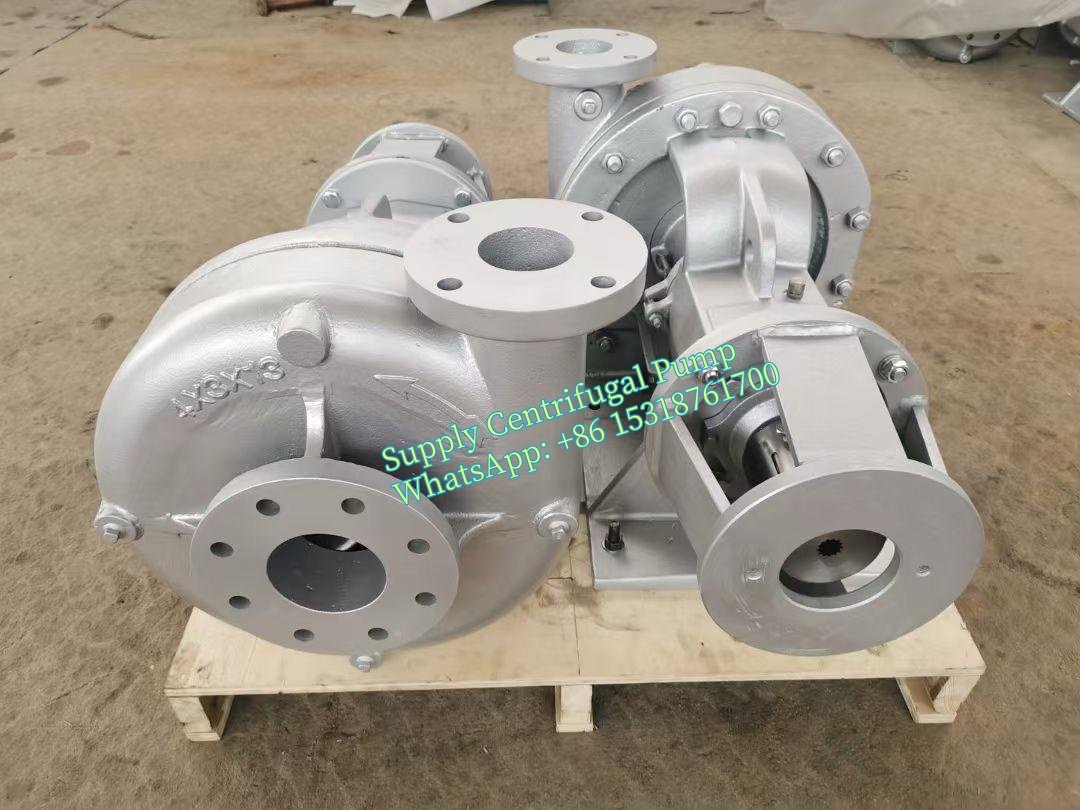

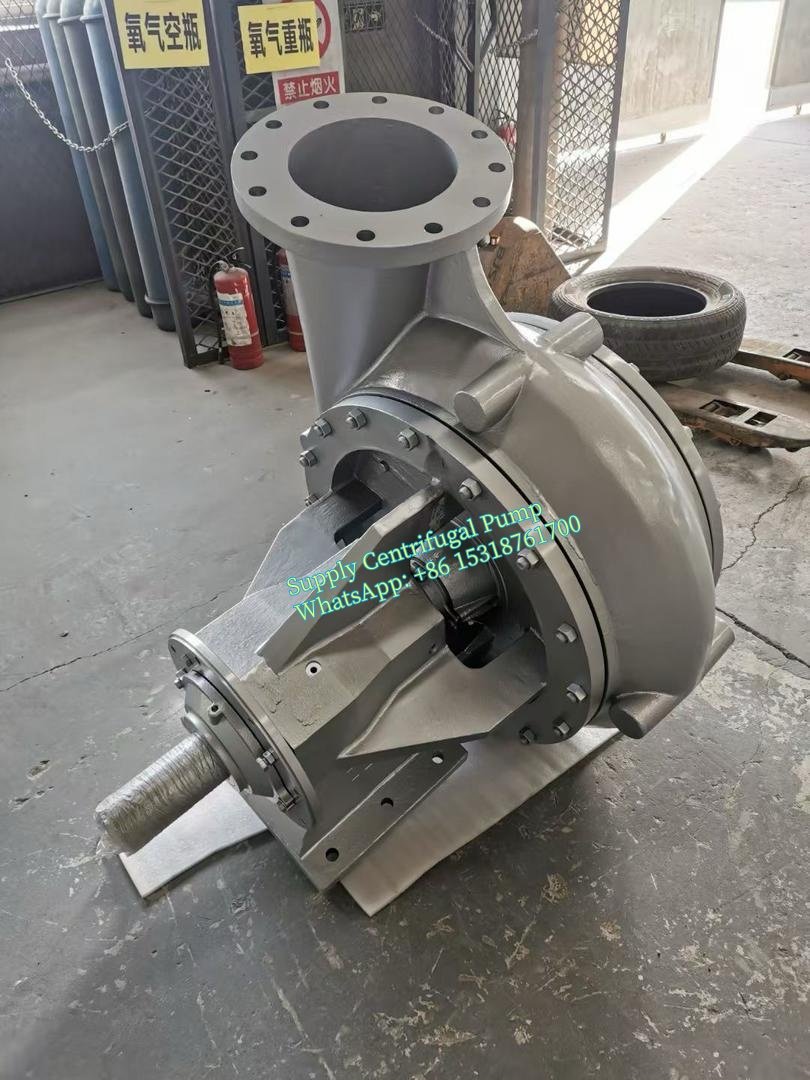

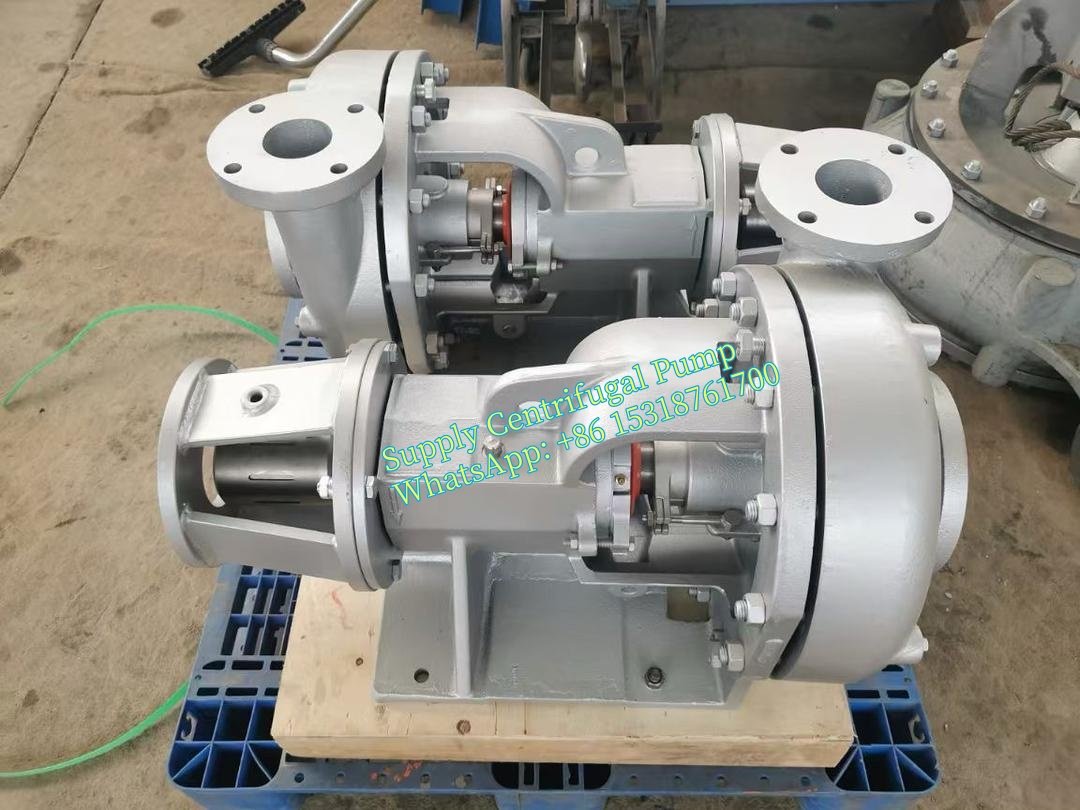

Gorman Rupp 12x12x12.88 Pump NOV Mission XP Series 12x10x23 Sandmaster 4x3x13 Centrifugal Pump Sandpump 20250117

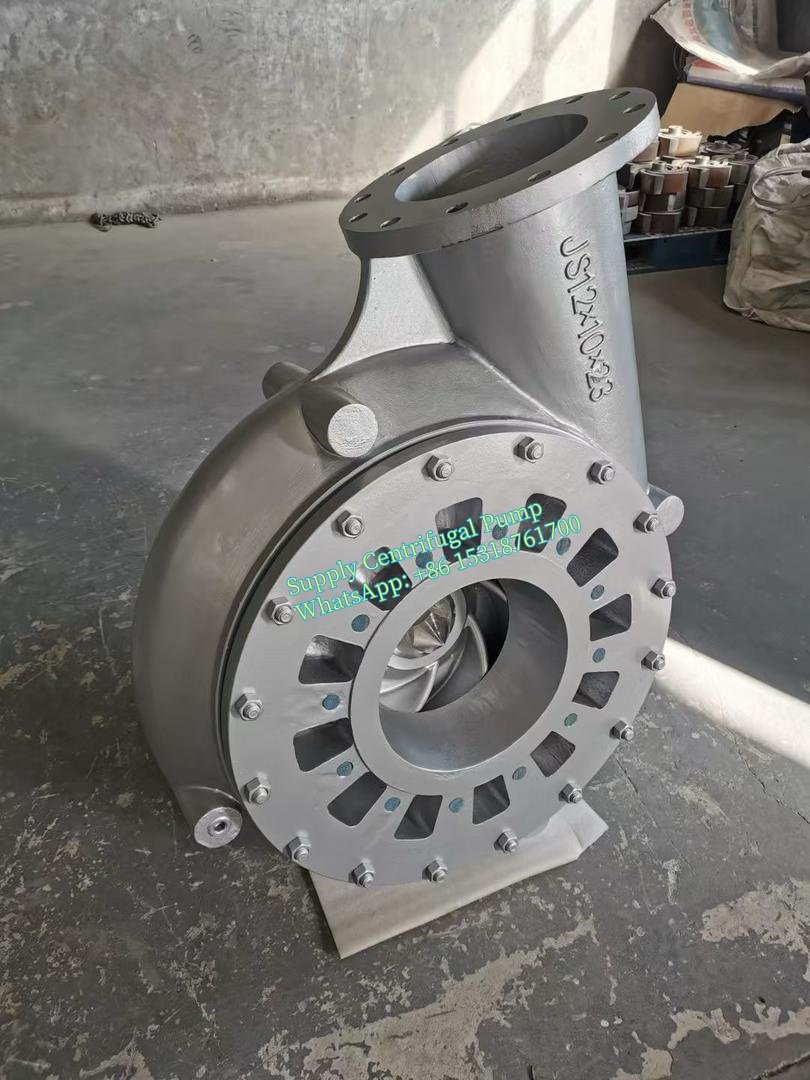

| Magnum XP Centrifugal Pump Parts List | ||||
| Item | Qty | Catalog Number | Part # | Description |
| 1 | 1 | 24022-01-30A | 651120206 | Casing, 14X12X22 |
| 25008-01-30A | 662001001 | Casing, 12x10x23 | ||
| 25289-02-30A | 662002089 | Casing, 8x6x18 | ||
| 2 | 32 | 3932-61 | 648402014 | Nut, Casing |
| 3 | 32 | 3862-86 | 658403308 | Stud, Casing (14 X 12 and 12 X 10 ) |
| 16 | 3862-90 | 601208285 | Stud, Casing ( 8 X 6 ) | |
| 16 | 3862-92 | 648401118 | Stud, Casing ( 8 X 6 ) | |
| 4 | 2 | 10399-55-01 | 658410501 | Gasket, Casing (14x12x22) |
| 25012-01-01 | 661010001 | Gasket, Casing (12x10x23) | ||
| 25012-02-05 | 662010032 | Gasket, Casing (8x6x18) | ||
| 5 | 1 | 24021-01-30 | 654310309 | Cover, Front (14x12x22) |
| 25009-01-30 | 662014003 | Cover, Front (12x10x23) | ||
| 25291-02-30 | 662014129 | Cover, Front (8x6x18) | ||
| 6 | 1 | 24024-X0-HS | 662005003 | Impeller, 14×12 Clockwise Rot. 22″ |
| 25010-Y0-30 | 662005002 | Impeller, 12×10 Clockwise Rot. 23″ | ||
| 25292-T0-30 | 662005018 | Impeller, 8×6 Clockwise Rot. 18″ | ||
| 7 | 1 | 7496-158 | 658408109 | Seal, Impeller Nose |
| 8 | 1 | 4372-29-21 | 658405006 | Key, Impeller |
| 9 | 1 | 24025-04-25L | 652309601 | Nose, Impeller ( Hex Design) |
| 24025-01-25L | 652309600 | Nose, Impeller (Two Flat Design) | ||
| 24025-03-25L | 662014054 | Nose, Impeller (2 Flat Ion Nitride) | ||
| 10 | 1 | 14430-19 | 658411400 | Screw, Set |
| 11 | 1 | 24026-25L | 658414255 | Jam Nut |
| 12 | 1 | 7496-153 | 658408059 | Seal, Impeller |
| 13 | 1 | 24036 | 658416102 | Mechanical Seal (Crane Type) |
| 14 | 1 | 24027-01-30 | 653322305 | Stuffing Box, Mech. Seal (14 X 12) |
| 24027-02-30 | 662014002 | Stuffing Box, Mech. Seal (12 X 10) | ||
| 25290-02-30 | 662014128 | Stuffing Box, Mech. Seal (8 X 6) | ||
| 15 | 2 | 3861-117 | 648401016 | Bolt, Stuffing Box |
| 16 | 1 | 24029-21BZ | 656422201 | Sleeve, Shaft |
| 17 | 1 | 7496-234 | 658408505 | Seal, Sleeve |
| 18 | 1 | 24030-01-13 | 654311604 | Slinger |
| 19 | 1 | 7496-238P | 658408554 | Seal, Slinger |
| 20 | 2 | 20619-03 | 658413604 | Oil Seal, Inboard Bearing |
| 21 | 1 | 20615-2 | 658413000 | Bearing, Inboard |
| 22 | 1 | 24031-01-01 | 654312008 | Frame 14 X 12 |
| 24031-02-01 | 662014001 | Frame 12 X 10 | ||
| 25293-02-01 | 662014130 | Frame 8 X 6 | ||
| 23 | 1 | 24032-01-01 | 654313006 | Housing, Bearing |
| 24 | 1 | 7496-272 | 658408901 | Seal, Bearing Housing |
| 25 | 1 | 20616-2 | 658413307 | Bearing, Outboard ( 14 X 12 ) |
| 2 | 20616-3 | 661009001 | Bearing, Outboard(12 X 10 and 8 X 6) | |
| 26 | 1 | 7496-267 | 658408802 | Seal, Bearing Cover |
| 27 | 1 | 6124-6 | 658407002 | Lock Washer |
| 28 | 1 | 6123-6 | 658406509 | Lock Nut, Bearing |
| 29 | 2 | 20619-04 | 658413638 | Oil Seal, Bearing Cover |
| 30 | 6 | 12530 | 601482417 | Drive Screws |
| 31 | 1 | 23017 | 601501505 | Nameplate |
| 32 | 1 | 24028-33 | 656420007 | Shaft |
| 33 | 1 | 4372-30-21 | 658405055 | Key, Coupling |
| 34 | 1 | 24033-01-01 | 654314004 | Cover, Bearing |
| 35 | 2 | 3861-139 | 648401081 | Bolts, Bearing Cover |
| 36 | 2 | 3936-19-L8 | 648402030 | Washer, Bearing Cover |
| 37 | 2 | 3932-62 | 626402702 | Nuts, Bearing Housing |
| 38 | 4 | 3861-138 | 648401057 | Bolt, Bearing Housing |
| 39 | 2 | 3936-19-L8 | 648402030 | Washer, Flat |
| 40 | 2 | 3861-165 | 601408289 | Bolt, Packing Gland |
| 41 | 2 | 24034-01-13 | 654315100 | Gland, Packing Half |
| 42 | 1 | 8264-344-K | 658409503 | Packing Set |
| 43 | 2 | 3909-04-87 | 658404207 | Screw, Cap |
| 44 | 1 | 8505-1 | 601474695 | Plug, Grease |
| 45 | 1 | 8267-1 | 601473689 | Breather |
| 46 | 1 | 19368 | 661010020 | Plug, Fitting |
| 58 | 2 | 8505-02-01 | 658409859 | Plug, Pipe |
| 59 | 1 | 8505-06-01 | 658410006 | Plug, Pipe |
| 60 | 1 | 22566 | 603445727 | Tag, Mechanical Seal |
| Packed Split – Box and Wearplate | ||||
| 47 | 1 | 24023-01-XX | 654310507 | Wearplate, Split Box |
| 48 | 1 | 8264-345-K | 658409552 | Packing Set |
| 49 | 2 | 22216-02 | 658413935 | Nut and Washer Assembly |
| 50 | 2 | 3861-168 | 1/2-13×4 lg Gr 5 | Bolt, Split-Box |
| 51 | 2 | 24037-01-87 | 654317007 | Stuffing Box, Split |
| 52 | 2 | 24039-13 | 658418207 | Latern Ring Half |
| 53 | 1 | 19368-01 | 601499403 | Fitting, Grease |
| 54 | 2 | 3909-13-87 | 658404405 | Screw, Cap |
| Auxiliary Tools | ||||
| 55 | 1 | 24040 | 658420203 | Tool, Impeller Nose and Nut |
| Standard Hex Socket | Tool, Impeller Nose (HEX) | |||
| 56 | 1 | 24041 | 658420252 | Tool, Impeller Removal |
| 57 | 1 | 24042 | 658420302 | Tool, Shaft Holder |
